TFT Panel + Control Board
The latest TFT LCD with control board product series from UJ Light Technologies Corp. covers sizes ranging from 3.5 inches to 10.1 inches. Utilizing mainstream LCD control ICs in the industry facilitates an easy integration process, ensuring guaranteed quality and supply stability. The unique Pin to Pin compatible design ensures compatibility in pin configuration across different module sizes, making it convenient for customers to directly apply TFT LCDs to new product designs, enhancing product scalability.
UJ-Light Technology emphasizes the importance of high quality and supply stability, attributes achieved through the application of mainstream LCD control ICs, ensuring excellent display performance and stability. This is crucial for customers to ensure stable production line operations and reliable support.
In summary, UJ-Light Technology's TFT LCD with control board product series combines various size options, mainstream control ICs, and Pin to Pin compatibility, providing customers with a comprehensive and user-friendly solution.
UJ-Light Technology emphasizes the importance of high quality and supply stability, attributes achieved through the application of mainstream LCD control ICs, ensuring excellent display performance and stability. This is crucial for customers to ensure stable production line operations and reliable support.
In summary, UJ-Light Technology's TFT LCD with control board product series combines various size options, mainstream control ICs, and Pin to Pin compatibility, providing customers with a comprehensive and user-friendly solution.
| Inch | Display Format | Photo | Model No. | Outline Dimension (mm) | View Area (mm) | Active Area (mm) | Brightness (cd/m²) | Interface | IC Part No. |
|---|---|---|---|---|---|---|---|---|---|
| 3.5 | 320x240 |  |
UT035DGGAHHp$ | 92.0x66.0x6.7 | - | 70.08x52.56 | 70.08x52.56 | 70.08x52.56 | FT810 |
| 3.5 | 320x240 |  |
UTC035CG-GFC$ | 92.0x66.0x6.7 | - | 70.08x52.56 | 400 | 4-WIRE SPI | FT811 |
| 4.3 | 480x272 |  |
UTC043BB-EWR$ | 105.5x67.2x9.7 | - | 95.04x53.86 | 320 | 320 | RA8875 |
| 4.3 | 480x272 |  |
UTC043BB-GWR$ | 105.5x67.2x9.7 | - | 95.04x53.86 | 320 | 4-WIRE SPI | RA8875 |
| 4.3 | 480x272 |  |
UT043DKFAHWcp$ | 120.0x69.0x6.5 | - | 95.04x53.86 | 250 | SPI | FT811 |
| 5.0 | 800x480 |  |
UTC050AA-EWR$ | 120.7x75.8x9.3 | - | 108.0x64.8 | 280 | Parallel | RA8873 |
| 5.0 | 800x480 |  |
UTC050AA-GWR$ | 120.7x75.8x9.3 | - | 108.0x64.8 | 280 | 108.0x64.8 | RA8873 |
| 5.0 | 800x480 |  |
UTC050AB-EWR$ | 120.7x75.8x9.3 | - | 108.0x64.8 | Parallel | RA8875 | |
| 5.0 | 800x480 |  |
UTC050AB-GWR$ | 120.7x75.8x9.3 | - | 108.0x64.8 | 280 | 4-WIRE SPI | RA8875 |
| 5.0 | 800x480 |  |

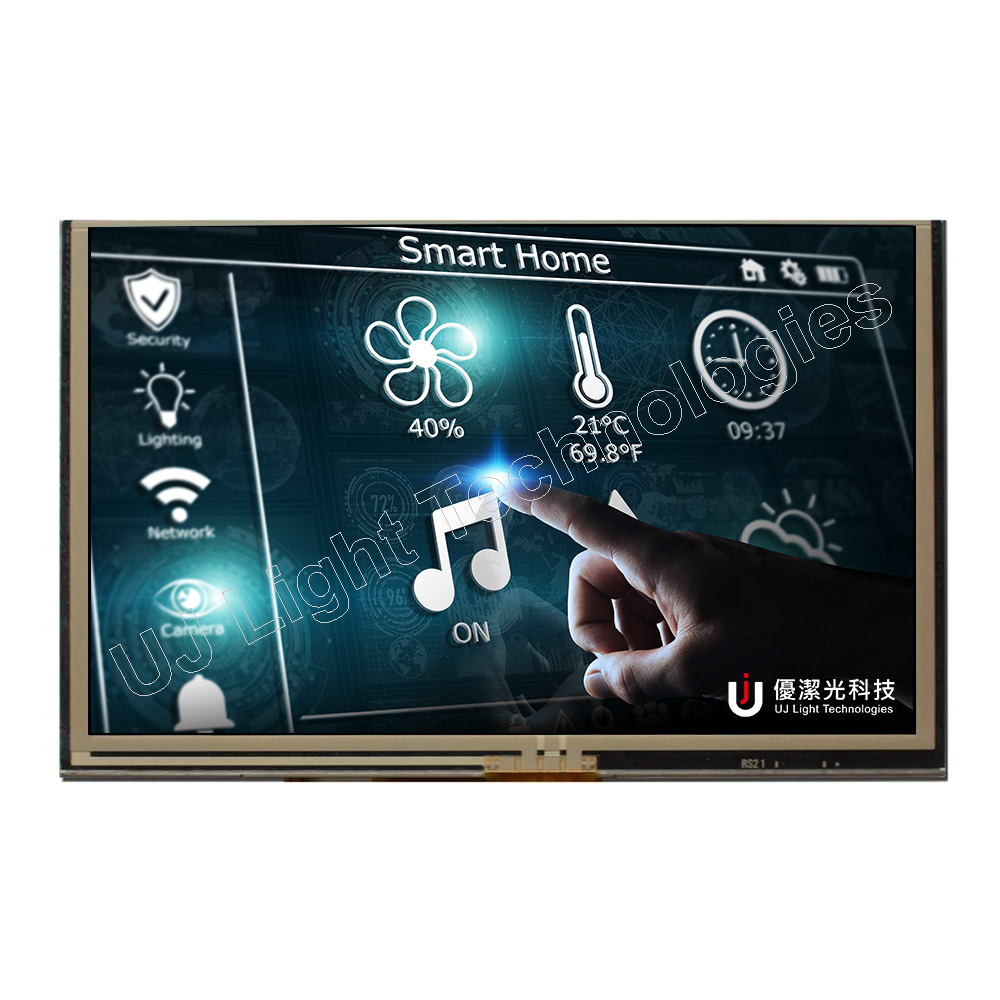

UTC050AE-EWR$ | 120.7x75.8x9.3 | 108x64.8 | 280 | 280 | RA8876 | |
| 5.0 | 800x480 |  |
UTC050AE-GWR$ | 120.7x75.8x9.3 | - | 108x64.8 | 280 | 4-WIRE SPI | RA8876 |
| 5.0 | 800x480 |  |
UT050DMGAHWp$ | 133.0x80.0x5.8 | - | 108x64.8 | 280 | SPI | FT810 |
| 5.0 | 800x480 |  |
UTC050CG-GWC$ | 133.0x80.0x8.7 | - | 108.0x64.8 | 240 | FT811 | FT811 |
| 7.0 | 800x480 |  |

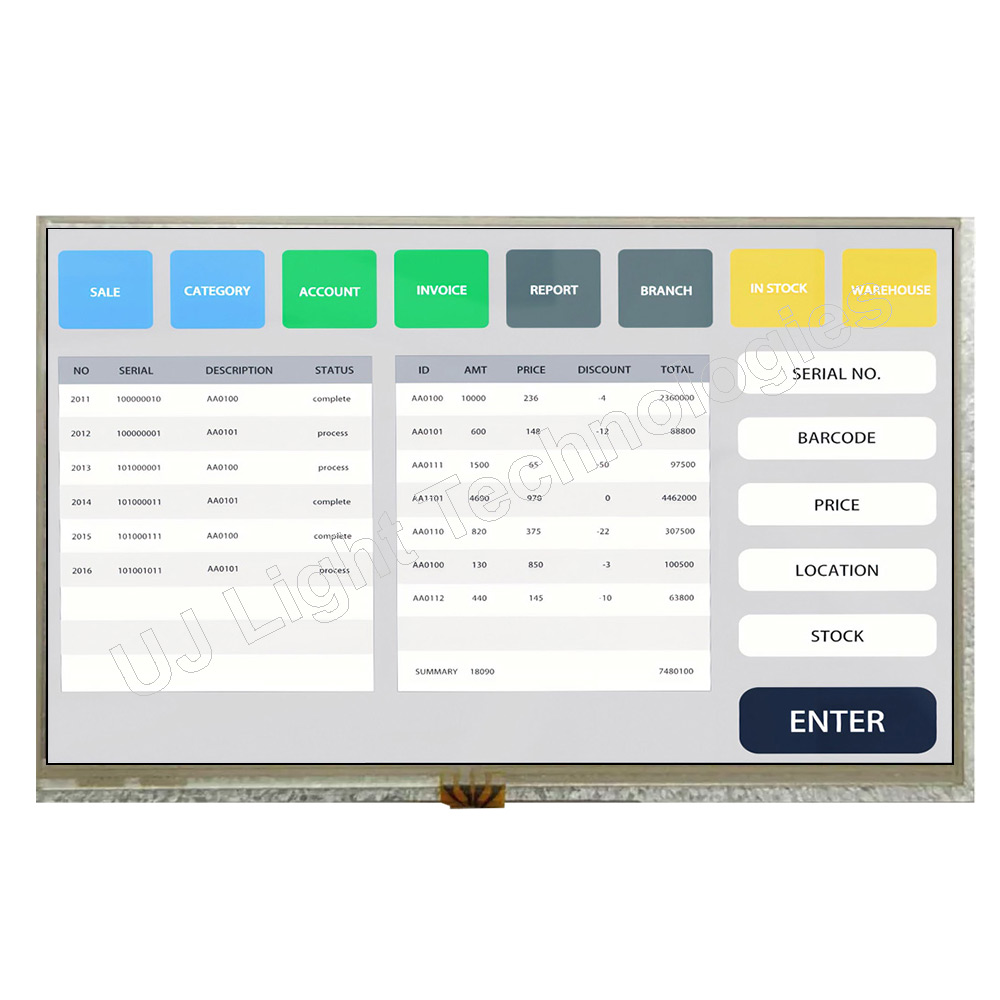

UTC070BA-EBR$ | 164.8x99.8x9.85 | - | 153.84x85.632 | 280 | Parallel | |
| 7.0 | 800x480 |  |
UTC070BA-GBR$ | 164.8x99.8x9.85 | - | 153.84x85.632 | 280 | 4-WIRE SPI | RA8873 |
| 7.0 | 800x480 |  |
UTC070BB-EBR$ | 164.8x99.8x9.85 | - | 153.84x85.632 | 280 | Parallel | RA8875 |
| 7.0 | 800x480 |  |
UTC070BB-GBR$ | 164.8x99.8x9.85 | - | 153.84x85.632 | 280 | 4-WIRE SPI | RA8875 |
| 7.0 | 800x480 |  |
UTC070BE-EBR$ | 164.8x99.8x9.85 | - | 153.84x85.632 | 280 | Parallel | RA8876 |
| 7.0 | 800x480 |  |
UTC070BE-GBR$ | 164.8x99.8x9.85 | - | 153.84x85.632 | 280 | 4-WIRE SPI | RA8876 |
| 7.0 | 800x480 |  |
UTC070CF-EFC$ | 190.08x121.92x10.4 | - | 154.21x85.92 | 640 | Parallel | RA8877 |
| 7.0 | 800x480 |  |
UTC070CF-GFC$ | 190.08x121.92x10.4 | - | 154.21x85.92 | 640 | 4-WIRE SPI | RA8877 |
| 10.1 | 1280x800 |  |
UTC101AF-EAC$ | 258x176.6x10.3 | - | 216.96x135.6 | 190 | Parallel | RA8877 |
| 10.1 | 1280x800 |  |
UTC101AF-GAC$ | 258x176.6x10.3 | - | 216.96x135.6 | 190 | 4-WIRE SPI | RA8877 |
| 10.1 | 1024x600 |  |
UTC101BE-EBN$ | 235x143x9.8 | - | 222.72x125.28 | 360 | Parallel | RA8876 |
| 10.1 | 1024x600 |  |
UTC101BE-GBN$ | 235x143x9.8 | - | 222.72x125.28 | 360 | 4-WIRE SPI | RA8876 |
| 3.5 | 320x240 |  |
BT035DGGAHHp$ | 92.0x66.0x6.7 | - | 70.08x52.56 | 150 | SPI | FT810 |
| 3.5 | 320x240 |  |
BTC035CG-GFC$ | 92.0x66.0x6.7 | - | 70.08x52.56 | 400 | 4-WIRE SPI | FT811 |
| 4.3 | 480x272 |  |
BTC043BB-EWR$ | 105.5x67.2x9.7 | - | 95.04x53.86 | 320 | Parallel | RA8875 |
| 4.3 | 480x272 |  |
BTC043BB-GWR$ | 105.5x67.2x9.7 | - | 95.04x53.86 | 320 | 4-WIRE SPI | RA8875 |
| 4.3 | 480x272 |  |
BT043DKFAHWcp$ | 120.0x69.0x6.5 | - | 95.04x53.86 | 250 | SPI | FT811 |
| 5.0 | 800x480 |  |
BTC050AA-EWR$ | 120.7x75.8x9.3 | - | 108.0x64.8 | 280 | Parallel | RA8873 |
| 5.0 | 800x480 |  |
BTC050AA-GWR$ | 120.7x75.8x9.3 | - | 108.0x64.8 | 280 | 4-WIRE SPI | RA8873 |
| 5.0 | 800x480 |  |
BTC050AB-EWR$ | 120.7x75.8x9.3 | - | 108.0x64.8 | 280 | RA8875 | |
| 5.0 | 800x480 |  |
BTC050AB-GWR$ | 120.7x75.8x9.3 | - | 108.0x64.8 | 280 | 4-WIRE SPI | RA8875 |
| 5.0 | 800x480 |  |
BTC050AE-EWR$ | 120.7x75.8x9.3 | - | 108x64.8 | 280 | RA8876 | |
| 5.0 | 800x480 |  |
BTC050AE-GWR$ | 120.7x75.8x9.3 | - | 108x64.8 | 280 | 4-WIRE SPI | RA8876 |
| 5.0 | 800x480 |  |
BT050DMGAHWp$ | 133.0x80.0x5.8 | - | 108x64.8 | 280 | 280 | FT810 |
| 5.0 | 800x480 |  |
BTC050CG-GWC$ | 133.0x80.0x8.7 | - | 108.0x64.8 | 240 | SPI | FT811 |
| 7.0 | 800x480 |  |
BTC070BA-EBR$ | 164.8x99.8x9.85 | - | 153.84x85.632 | 280 | Parallel | RA8873 |
| 7.0 | 800x480 |  |
BTC070BA-GBR$ | 164.8x99.8x9.85 | - | 153.84x85.632 | 280 | 4-WIRE SPI | RA8873 |
| 7.0 | 800x480 |  |
BTC070BB-EBR$ | 164.8x99.8x9.85 | - | 153.84x85.632 | 280 | Parallel | RA8875 |
| 7.0 | 800x480 |  |
BTC070BB-GBR$ | 164.8x99.8x9.85 | - | 153.84x85.632 | 280 | 4-WIRE SPI | RA8875 |
| 7.0 | 800x480 |  |
BTC070BE-EBR$ | 164.8x99.8x9.85 | - | 280 | Parallel | RA8876 | |
| 7.0 | 800x480 |  |
BTC070BE-GBR$ | 164.8x99.8x9.85 | - | 153.84x85.632 | 280 | 4-WIRE SPI | RA8876 |
| 7.0 | 800x480 |  |
BTC070CF-EFC$ | 190.08x121.92x10.4 | - | 154.21x85.92 | 640 | Parallel | RA8877 |
| 7.0 | 800x480 |  |
BTC070CF-GFC$ | 190.08x121.92x10.4 | - | 154.21x85.92 | 640 | 4-WIRE SPI | RA8877 |
| 10.1 | 1280x800 |  |
BTC101AF-EAC$ | 258x176.6x10.3 | - | 216.96x135.6 | 190 | Parallel | RA8877 |
| 10.1 | 1280x800 |  |
BTC101AF-GAC$ | 258x176.6x10.3 | - | 216.96x135.6 | 190 | 4-WIRE SPI | RA8877 |
| 10.1 | 1280x800 |  |
BTC101BE-EBN$ | 235x143x9.8 | - | 222.72x125.28 | 360 | Parallel | RA8876 |
| 10.1 | 1280x800 |  |
BTC101BE-GBN$ | 235x143x9.8 | - | 222.72x125.28 | 360 | 4-WIRE SPI | RA8876 |
