16Cx2L STN LCD Modules | UC1602L
Model : UC1602L
- COB with metal frame
- 5x7 dots with cursor
- Built-in controller ST7066 or equivalent
- +5V single power supply
- 1/16 duty cycle
- LED B/L pins: 17/18
- No Negative Voltage Option
- DIP module
數量
Description
UC1602L is 16x2 characters LCD Module (LCM) made using Chip on Board (COB) method and comes with metal frame.

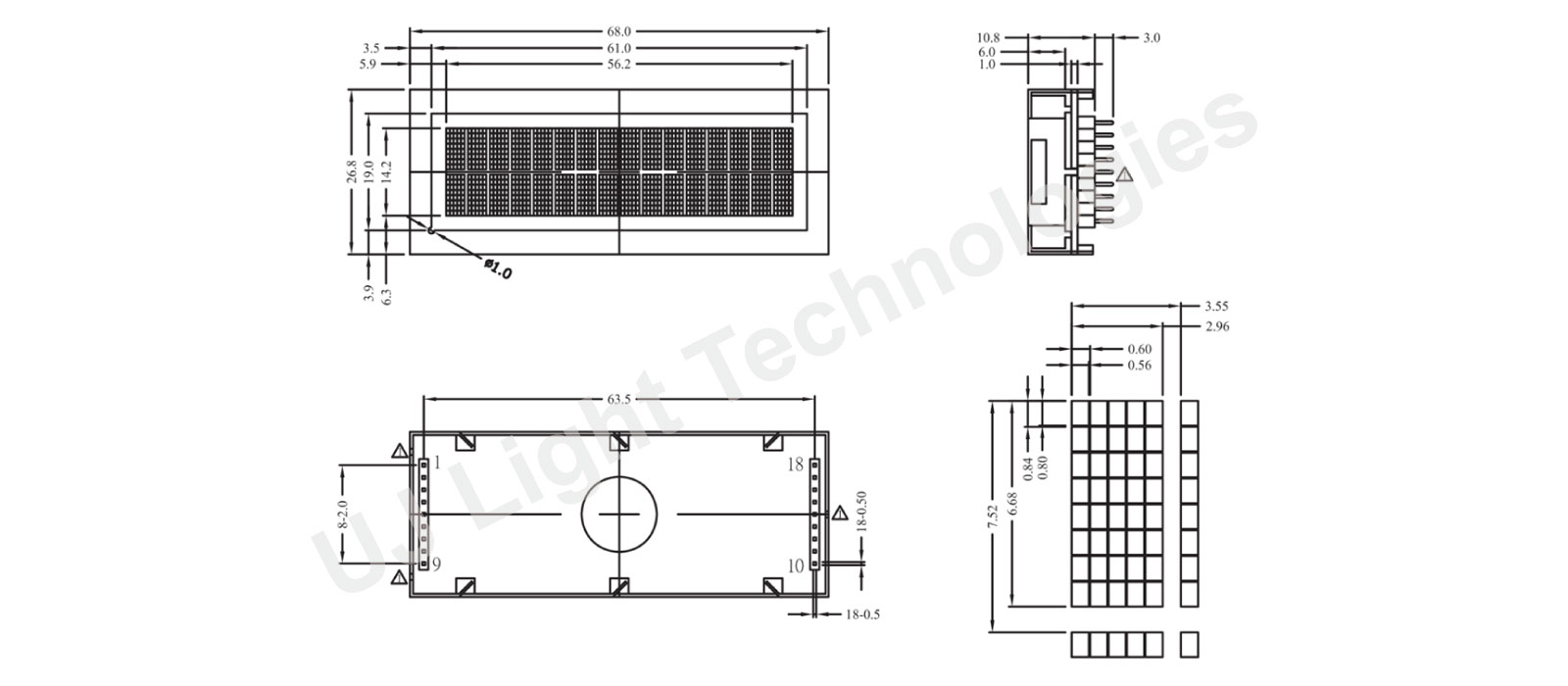

Module dimension of UC1602L is (68x26.8) mm and viewing area is (61x19) mm.
It has built-in controller ST7066 (or equivalent) that provides different language options, English, Japanese, Chinese, Western & Eastern European, Russian etc.
Module dimension of UC1602L is (68x26.8) mm and viewing area is (61x19) mm.
It has built-in controller ST7066 (or equivalent) that provides different language options, English, Japanese, Chinese, Western & Eastern European, Russian etc.
Specification
Features
| Item | Dimension | Unit |
| Module dimension | 68.0 × 26.8 | mm |
| View Area(AA) | 61.0 × 19.0 | mm |
| Dot size | 0.56 × 0.80 | mm |
| Character Size | 2.96 x 6.68 | mm |
Electrical Characteristics (Ta=25±2°C)
| Item | Symbol | Condition | Typical Value | Unit |
| Input Voltage | Vdd | Vdd = +5V | 5.0 | V |
| Supply Current | Idd | Vdd = +5V | 1.5 | mA |
| LCD Driving Voltage | Vdd-Vo | 25°C | 4.0 | V |
LED Forward Voltage (yellow-green) | Vf | 25°C | 4.2 | V |
| LED Forward Current | If | 25°C | 150 | mA |
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1 | 1Vss | GND |
| 2 | Vdd | +5V |
| 3 | Vo | Contrast adjustment |
| 4 | RS | H/L register select signal |
| 5 | R/W | H/L read/write signal |
| 6 | E | H --> L enable signal |
| 7~14 | DB0~7 | H/L data bus line |
| 15 | NC | No Connection |
| 16 | NC | No Connection |
| 17 | A/Vee | Power Supply for B/L(+) |
| 18 | K | Power supply for B/L (GND) |
