UTC101BE-GBN$ is a 10.1" TFT LCD with 1024*RGB*600 resolution.

It is a trasmissive normally White TFT with 4-Wire SPI  Interface.

Controller IC used in TFT is RA8876

The RA8876 is a low power color LCD Controller with support for up to 512M-bits external SDRAM memory. The RA8876 supports an 8/16-bit asynchronous parallel host bus while providing high performance bandwidth into the external display memory allowing for fast screen updates. The RA8876 also provides support for multiple display buffers, Picture-in-Picture, Opacity control, and display rotation/mirror … etc.

產品規格

Symbol	Dimension	Unit

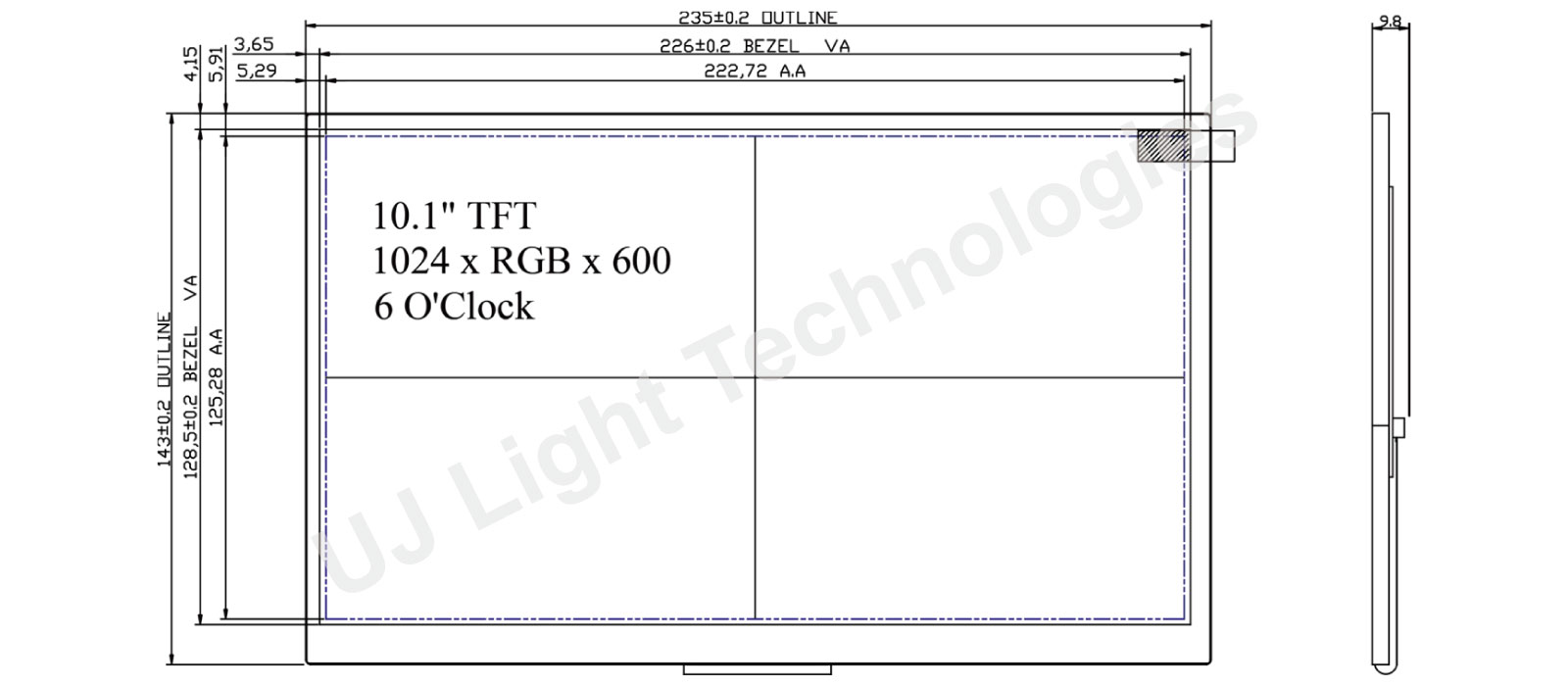

Module dimension	235 x 143 x 9.8	mm
Active Area	222.72 x 125.28	mm
LED Numbers	42 LEDs

電氣特性
模組

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Power Supply For Logic	VDD	-	3.0	-	3.3	V
Input High Voltage	VIH	-	0.7VDD	-	VDD	V
Input Low Voltage	VIL	-	VSS	-	0.3VDD	V
Supply Current	Idd	VDD=3.3V	-	-	-	mA

背光

Item	Symbol	Min.	Typ.	Max.	Unit
Luminance	L	340	360	-	cd/m2

Pin	Symbol	Type	Function
1,2	VSS	-	Ground
3,4	VDD	-	Power supply voltage.(3.3V)
5	BL_EN	H/L	Backlight control pin. H:On L:Off
6~9	VSS	-	Ground
10	INT	-	Interrupt Signal Output. The interrupt output for MCU to indicate the status of RA8876
11	/RES	H/L	Reset signal
12~15	VSS	-	Ground
16	SCS	H/L	SPI Chip Select.
17	SDO	H/L	4-wire SPI Data Output.
18	SDI	H/L	4-wire SPI Data Input.
19	SCL	H/L	4-wire Serial clock.
20~27	VSS	-	Ground
28	TP-CLK	H/L	External Clock Input for TP controller.
29	TP-CS	H/L	Chip Select Input for TP controller.
30	TP-INT	H/L	Interrupt output for TP controller.
31	TP-DI	H/L	Serial Data Input for TP controller.
32	TP-DO	H/L	Serial Data output for TP controller.
33, 34	VLED+	H/L	Power supply for backlight driver.(3.0~5.0V)
35, 36	VLED-	H/L	Power supply for backlight driver.(GND).
